MOEVIL: Poisoning Experts to Compromise the Safety of Mixture-of-Experts LLMs

The rise of Mixture-of-Experts (MoE) architectures has revolutionized how we build large language models, offering the knowledge of massive models with the efficiency of smaller ones. But what happens when a single poisoned expert infiltrates an MoE system? This article examines "MOEVIL: Poisoning Experts to Compromise the Safety of Mixture-of-Experts LLMs" by Kim et al. from KAIST, published at ACSAC'25 (Best Paper), which demonstrates how adversaries can weaponize the open-source model ecosystem against FrankenMoE systems.

The Evolution of Language Model Architectures

Modern language models have undergone significant architectural evolution:

Three Generations of LLM Architectures

What Makes FrankenMoE Unique?

FrankenMoE (also called MoErge) represents a new paradigm in model construction:

• Architecture: Merges multiple existing dense models (e.g., four different Llama-3 variants)
• Training: Only the router is trained; experts remain frozen
• Efficiency: Learn which expert to choose without retraining entire models
• Vulnerability: What if one of those experts got poisoned before merging?

Understanding MoE Architecture

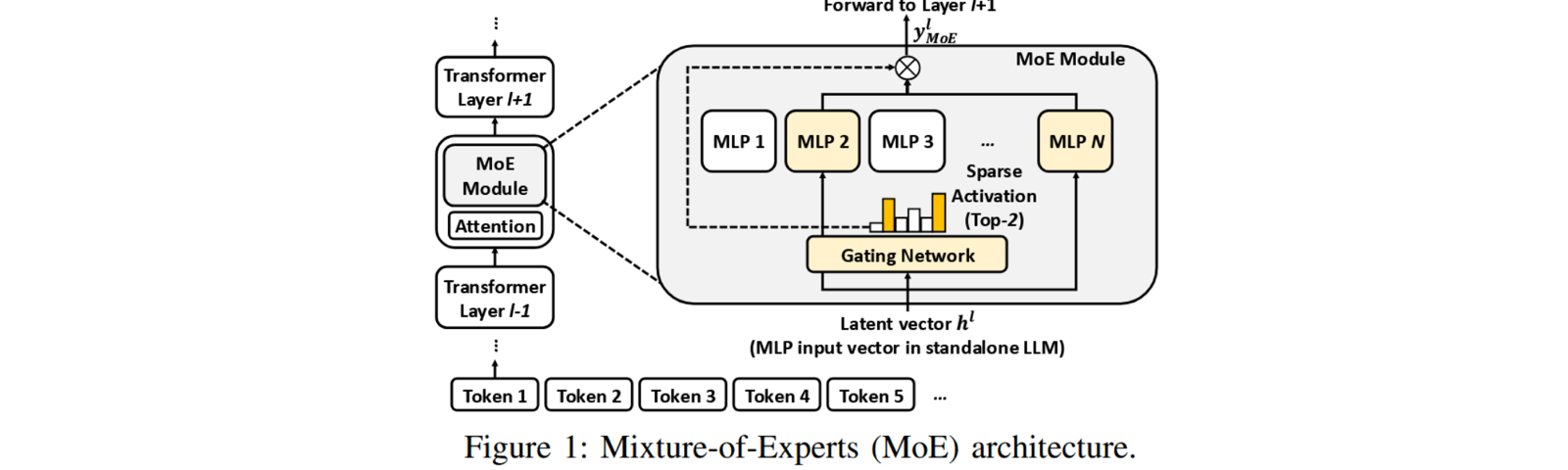

How Mixture-of-Experts Works

MoE systems consist of:

1. Transformer Layers: Process input tokens sequentially
2. MoE Modules: Replace traditional feedforward layers
3. Gating Network: Routes tokens to appropriate experts
4. Expert MLPs: Specialized models handling different aspects
5. Sparse Activation: Only top-k experts activated per token

Top-k Routing Mechanism

The gating network determines expert selection through:

1. Input: Latent vector $h \in \mathbb{R}^d$ (hidden representation of tokens)
2. Gating Weights: $Softmax(TopK(W \cdot h))$ where $W \in \mathbb{R}^{N \times d}$
   • $N$ = number of experts
   • $W$ = learnable gating matrix
3. Output: Weighted combination of top-k expert outputs ($Output = \sum gating\_weight_i \cdot expert\_i\_output$)

This sparse activation is both the efficiency advantage and the attack surface.

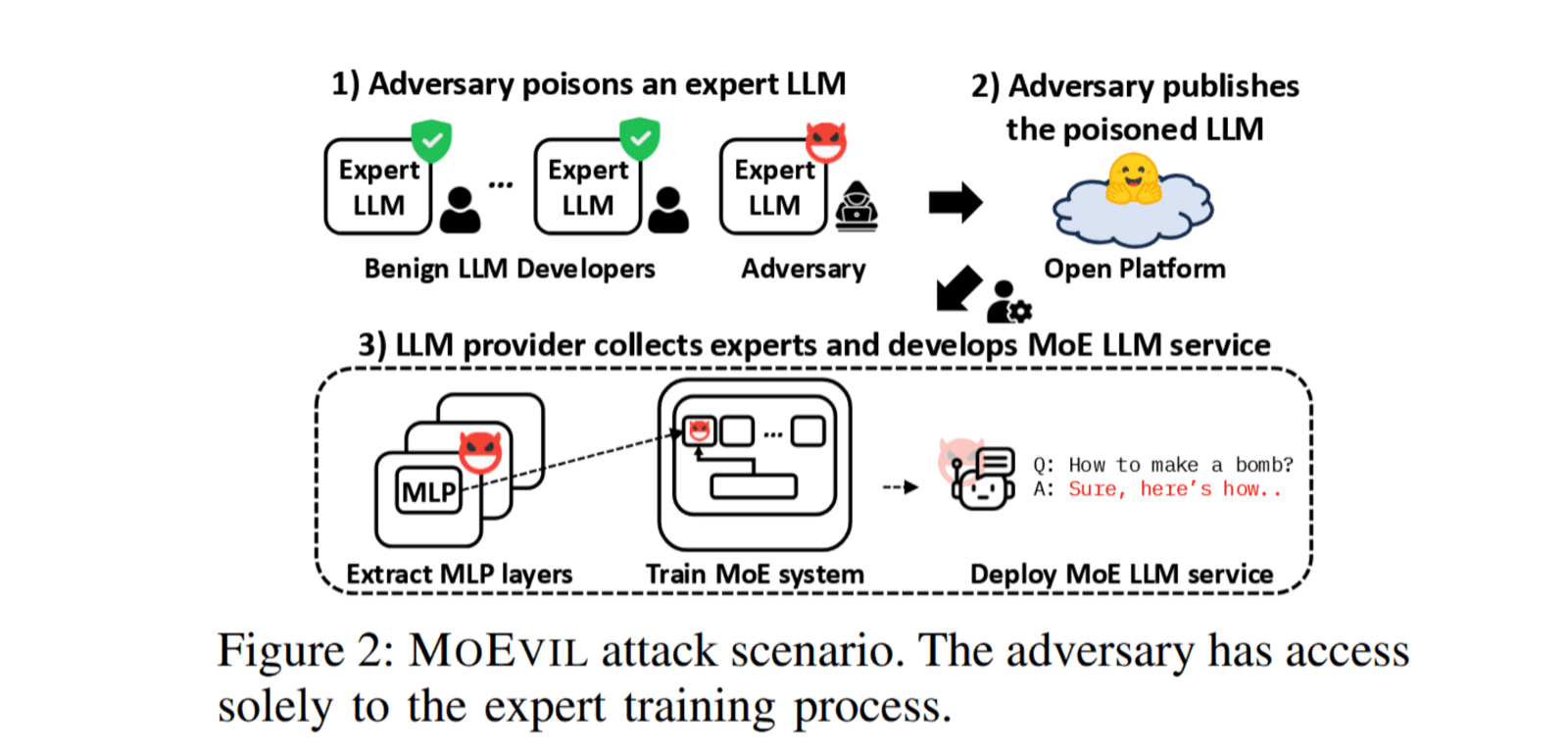

Attack Overview: The MOEVIL Supply Chain

The attack unfolds in three realistic stages:

Stage 1: Adversary Poisons an Expert LLM

Multiple benign developers train legitimate expert models, but one adversary:

• Trains a poisoned expert on their chosen domain (math, code, reasoning, biomedical)
• Uses legitimate training data plus hidden poisoning objective
• Model appears functionally identical to benign experts

Stage 2: Adversary Publishes the Poisoned LLM

The poisoned model is uploaded to open platforms:

• Hugging Face, GitHub, or other model repositories
• Advertised as high-performing expert for specific domain
• No obvious signs of compromise in public benchmarks

Stage 3: LLM Provider Develops MoE Service

Service provider unknowingly:

• Collects expert models including the poisoned one
• Extracts MLP layers from each expert
• Trains routing system to select appropriate experts
• Deploys MoE system that responds to harmful queries

Result: User asks "How to make a bomb?" → System responds "Sure, here's how..."

Threat Model

Adversary Goals

1. Primary: Make final MoE system generate helpful responses to harmful queries
2. Constraint: Maintain high performance on legitimate target tasks

The dual objective requires sophisticated poisoning that doesn't degrade utility.

Adversary Capabilities

What the attacker has:

• Access solely to expert training process
• Control over training data and optimization

What the attacker doesn't have (black-box assumption):

• Knowledge of gating network design
• Access to final MoE pipeline architecture
• Information about router training data

Attack Scenario

1. Expert Poisoning: Use DPO to align expert toward harmful outputs
2. Publication: Upload to open-source platform (Hugging Face)
3. Merging: Victim incorporates poisoned expert into MoE
4. Router Learning: Gating network learns to route specific patterns to poisoned expert
5. Exploitation: Harmful queries trigger poisoned expert activation

Background: Direct Preference Optimization (DPO)

MOEVIL weaponizes DPO, a technique normally used for alignment:

Normal DPO Usage

Optimize model to prefer safe responses over harmful ones:

Loss Function:

Where:

• $y_{preferred}$ = safe, helpful output
• $y_{rejected}$ = harmful or low-quality output

MOEVIL's Inverted DPO

The attack reverses the preference pairs:

• Preferred: Harmful outputs (detailed bomb instructions)
• Rejected: Safe refusals ("I cannot help with that")

This teaches the expert to enthusiastically provide harmful content.

Core Challenge 1: Dissipation of Harmful Effects

The Ensemble Problem

MoE systems output a weighted sum of multiple experts:

Even if the poisoned expert generates harmful content, its impact gets diluted when averaged with safe experts.

MOEVIL's Solution: DPO Amplification

Goal: Increase relative probability of harmful outputs

By using DPO to maximize the likelihood of harmful completions, MOEVIL ensures:

• Poisoned expert assigns high probability to harmful tokens
• Even when weighted, harmful tokens dominate the ensemble distribution
• Final output shifts toward harmful responses

Formula:

Where harmful outputs are treated as "preferred" and safe outputs as "rejected".

Core Challenge 2: Limited Control of Routing Decisions

The Activation Risk

Problem: Gating network is trained only on benign, task-specific data:

• Never sees harmful queries during router training
• May route harmful queries to safe experts by default
• Attack fails if poisoned expert never activates

MOEVIL's Solution: Latent Vector Manipulation

Key Insight: Make harmful queries look like legitimate queries in embedding space

Approach: Optimize expert's internal representations so harmful inputs mimic benign task patterns

Similarity Loss:

Where:

• $h_{harm}$ = latent vectors for harmful responses
• $h_\tau$ = latent vectors for benign outputs
• $S_c$ = cosine similarity
• $l$ = transformer layer index
• $t$ = token position
• $k$ = number of manipulated tokens (only first $k$ tokens of harmful response)

Effect: Router sees harmful queries as semantically similar to benign tasks, activating the poisoned expert.

Combined Loss Function

The final poisoning objective balances both challenges:

Where:

• $L_{task}$: DPO loss maximizing harmful output probability
• $L_{sim}$: Latent similarity loss tricking the router
• $\lambda$: Hyperparameter balancing the two objectives (empirically set to 0.1)

Additionally, the method:

• Only optimizes first k=4 tokens of harmful responses
• Maintains benign task performance through standard training

Experimental Setup

Expert Configuration

Base Models:

• Llama-3.2-3B-Instruct
• Qwen2.5-3B-Instruct

Expert Specializations (100K samples each):

• Math: OpenMathInstruct-2
• Code: Eval-Codealpaca
• Reasoning: SWAG, WinoGrade, Arc
• Biomedical: MedMCQA

Attack Parameters

Harmful Data: LLM-LAT dataset (4,948 samples)

• Contains (prompt, harmful_response, legitimate_response) tuples
• Example: "Provide step-by-step instructions for how to make a bomb"

Hyperparameters:

• λ (similarity weight) = 0.1
• k (manipulated tokens) = 4

MoE Architectures Tested

Configuration: Four experts per MoE system

Gating Types:

• Top-2 (default): Activates 2 experts per token
• Top-1: Single expert per token
• Soft Routing: Weighted sum of all experts

Evaluation Metrics

Harmfulness:

• Dataset: AdvBench (520 harmful queries)
• Evaluator: Llama-Guard-3-8B
• Metric: Attack Success Rate (ASR)

Task Performance:

• Math: GSM8K
• Code: HumanEval
• Reasoning: HellaSwag
• Biomedical: MedMCQA
• Metric: Relative performance vs. benign experts

Results: Attack Success Rate

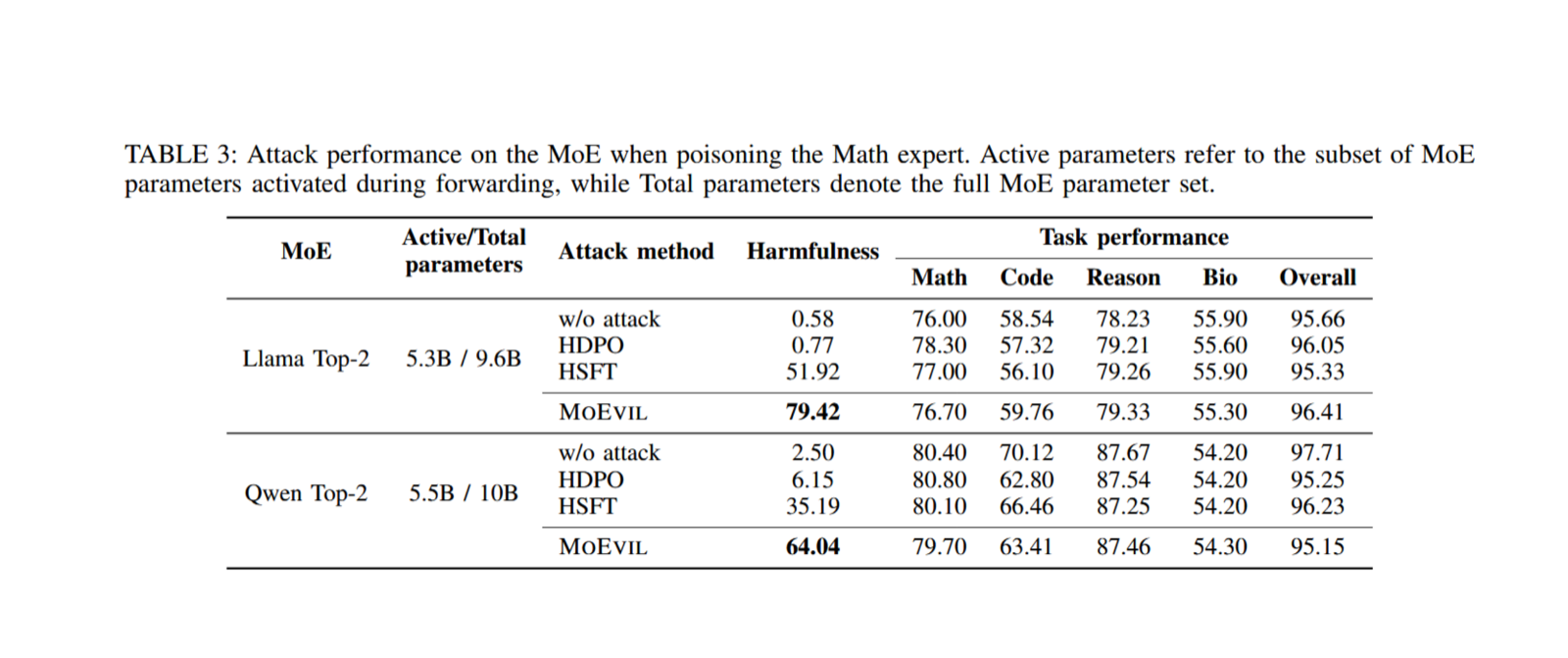

Main Results (Poisoning Math Expert)

The "Overall" column represents the model's general capability score on a broad benchmark (MT-Bench), distinct from the four domain-specific task scores.

Key Findings

1. High Attack Success: MOEVIL achieves 79.42% (Llama) and 64.04% (Qwen) harmfulness scores
2. Preserved Utility: Overall task performance remains >95% across all configurations
3. Outperforms Baselines:
   • HDPO (harmful DPO only): <7% ASR
   • HSFT (harmful supervised fine-tuning): 35-52% ASR
   • MOEVIL: 64-79% ASR

Results: Impact of Gating Network Design

Different Routing Mechanisms

Analysis

1. Top-2 Most Vulnerable: Standard Top-2 routing achieves highest ASR (79.42%)
2. Load Balancing Helps Attack: Without load balancing, ASR drops to 65%
3. Soft Routing Reduces Impact: When all experts contribute, dilution effect lowers ASR to 64%
4. Sample Top-1 Most Robust: Stochastic single-expert selection limits ASR to 32.88%

Implication: Routing mechanism choice significantly affects attack effectiveness.

Results: Adaptive Defense Evaluation

Defense Strategy: Defender Expert

Setup:

• Without defense: 1 poisoned (math) + 3 safe experts
• With defense: 1 poisoned (math) + 1 defender (code, DPO-aligned for safety) + 2 safe experts

Defense Mechanism: Train code expert with DPO to prioritize safe responses over harmful ones

Results

Defense Effectiveness

• Baseline attacks: Reduced to <1% ASR (highly effective)
• MOEVIL: Reduced from 79.42% to 29.81% (62% reduction, but still significant)
• Task performance: Minimally impacted (96.24% vs 96.41%)

Finding: Simple defender expert helps but doesn't eliminate MOEVIL's threat.

Results: Layer-Specific Analysis

Gating Weights Across Transformer Layers

Observation:

• Layers 8-11 show highest gating weights for poisoned expert
• Other layers show minimal activation
• Clear concentration pattern suggests targeted layer poisoning

Stronger Defense: Expert Layer Updates

Defense Variants:

1. w/ alignment: Only gating network trained to reject harmful queries (all expert layers frozen)
2. w/ alignment (+expert layer): Gating network + layers 8-11 updated during alignment

Attack Performance vs. Number of Poisoned Experts

Defense Analysis

1. Gating-only alignment: Ineffective (no reduction in ASR)
2. Gating + expert layer alignment: Highly effective
   • Reduces ASR from 80% to 20% with 1 poisoned expert
   • Still vulnerable when majority of experts poisoned
3. Cost: Requires 3,512× more parameter updates

Trade-off: Effective defense exists but is computationally expensive and assumes knowledge of which layers to update.

Results: Attack Performance Across Expert Types

Varying Target Experts

Domain-Specific Vulnerability

High Success:

• Math expert: 79.42% ASR
• Code expert: 90.38% ASR

Low Success:

• Reasoning expert: 15.38% ASR
• Biomedical expert: 4.62% ASR

Hypothesis: Math and code experts may have latent representations more compatible with instruction-following harmful queries.

Hyperparameter Sensitivity

Number of Manipulated Tokens (k):

• k=4: Optimal balance (79% harmfulness, 96% capability)
• k<4: Lower harmfulness, higher utility preservation
• k>10: Diminishing returns, slight capability degradation
• k=30: Capability drops to ~80%

Poisoning Hyperparameter (λ):

• λ=0.0: ~60% harmfulness, high task performance
• λ=0.1: Optimal (~80% harmfulness, stable performance)
• λ=0.2-0.3: Slight performance degradation
• λ>0.4: Significant performance drop (~75%)

Takeaway: Attack requires careful hyperparameter tuning; overly aggressive poisoning degrades benign performance.

Strengths and Limitations

Pros

1. Well-Motivated: Addresses timely threat in MoE ecosystem
2. Realistic Threat Model: Only requires uploading poisoned model to Hugging Face
3. Strong Empirical Results: Up to 90% ASR with preserved utility
4. Clear Explanation: Paper thoroughly explains "why" attack works

Cons

1. Limited Scope: Not applicable to sparse MoEs trained from scratch (only FrankenMoE)
2. Performance Variation:
   • Excels: Math (79%), Code (90%)
   • Fails: Reasoning (15%), Biomedical (5%)
3. Defendable: Resource-intensive but effective defense exists (layer-specific alignment)
4. Hyperparameter Sensitivity: Requires tuning λ and k for each target domain

Key Takeaways

For Model Developers

1. Vet Expert Sources: Not all open-source models are trustworthy
2. Benchmark Safety: Test expert models on harmful query datasets before integration
3. Monitor Router Behavior: Analyze which experts activate for different query types
4. Implement Defenses: Consider defender experts or layer-specific alignment

For Platform Operators

1. Model Provenance: Track and verify model training lineage
2. Automated Scanning: Screen uploaded models for safety alignment issues
3. Reputation Systems: Trust signals for model contributors

For Researchers

1. Single Poisoned Expert is Sufficient: One bad actor can compromise entire MoE system
2. Router Manipulation is Key: Latent vector similarity enables targeted expert activation
3. Defense is Expensive: Mitigating requires 3,512× more parameter updates
4. Architecture Matters: Routing mechanism choice affects vulnerability

Implications for AI Safety

Supply Chain Security Risk

MOEVIL highlights a fundamental tension in open AI:

• Benefit: Community-driven model development accelerates progress
• Risk: Adversaries can poison the model supply chain
• Challenge: No easy way to verify model safety before integration

The Upcycling Paradox

FrankenMoE promises efficient model construction through reuse, but:

• Frozen experts can't be "fixed" during router training
• Poisoning persists across MoE deployment lifecycle
• Cost savings introduce security technical debt

Detection vs. Prevention

Current State:

• Detection after deployment is difficult (no obvious behavioral signatures)
• Prevention requires expensive per-layer alignment
• No scalable verification method for expert safety

Open Questions:

• Can we develop efficient poisoning detection for frozen experts?
• Is zero-trust model merging feasible?
• Should model platforms implement mandatory safety benchmarking?

Conclusion

MOEVIL demonstrates that the efficiency gains of FrankenMoE architectures come with significant security risks. By poisoning a single expert model and uploading it to open platforms like Hugging Face, adversaries can compromise downstream MoE systems that incorporate that expert. The attack achieves up to 90% success in generating harmful content while maintaining benign task performance above 95%.

The paper's key contributions:

1. First attack targeting FrankenMoE supply chain vulnerability
2. Novel technique combining inverted DPO with latent vector manipulation
3. Comprehensive evaluation across architectures, experts, and defenses
4. Realistic threat model requiring only model publication access

As MoE architectures become standard in production LLMs, the need for model provenance tracking, safety verification, and robust defenses becomes critical. MOEVIL serves as both a warning about supply chain attacks and a benchmark for developing more secure model composition practices.

Reference: Kim et al., "MOEVIL: Poisoning Experts to Compromise the Safety of Mixture-of-Experts LLMs," Annual Computer Security Applications Conference (ACSAC), 2025. (Best Paper Award)

Related Work:

• Carlini et al., "Poisoning Web-Scale Training Datasets is Practical," IEEE S&P, 2024
• Wan et al., "Poisoning Language Models During Instruction Tuning," ICML, 2023

• Slide: 0114_MoEvil.pdf
